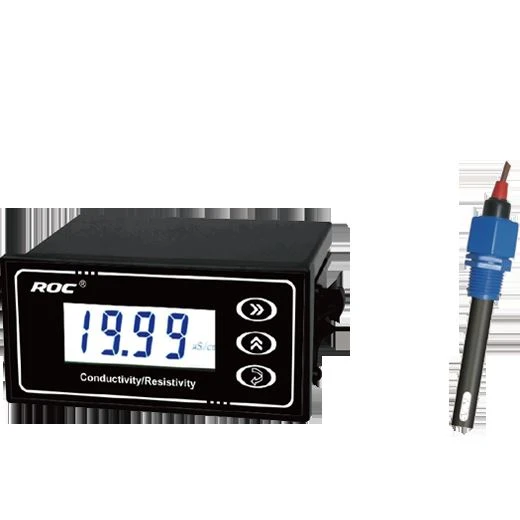

CCT-3300 Series Conductivity Transmitting Controller widely used for pharmacy, food, beverage, paper making, environment protection industries.
Feature:
Intelligent automatic range switching, seamless connection, improve product measurement accuracy.
2. Pure white background light LCD display, with various prompt symbols on the top to facilitate the setting operation.
3. Conductivity/TDS operation can be set to meet the needs of different measurement standards.
4. It has the function of checking the current water temperature or transmission current at any time, which is convenient for debugging the equipment.
5. Single-channel, isolated, reversible, fully adjustable (4-20) mA current output.
6. Instrument/transmit dual mode, compatible with all (4~20) mA receiving module connections.
7. Platform development, DC12V, DC24V, AC110V, AC220V power supply specifications are optional.
8. The measurement, transmission and control channels are completely isolated, and the work is more stable.
9. The DC24V power supply suitable for humid environment can share the centralized power supply in the system.
Parameter:
| Model | CCT-3301E | CCT-3300E | CCT-3310E | CCT-3320E | CCT-3320/3320T |
| Power supply | DC12V±1V | DC24V±4V | AC 110±10% | AC 220±10% | AC 220±10% |
| Conductivity Cell constant | 0.10；1.00；5.00（cm | ||||
| Measurement Range | Conductivity | 0.5μS/cm～10.00mS/cm | |||
| TDS | 0.25ppm～5.00ppt | ||||
| Temp. | 0～50℃（Temp.compensation component：NTC10K） | ||||
| Resolution | Conductivity | 0.01μS /cm；0.01mS/cm | |||
| TDS | 0.01ppm | ||||
| Temp. | 0.1℃ | ||||
| Accuracy | Conductivity | 1.5%（FS） | |||
| Resistivity | 1.5%（FS） | ||||
| TDS | 1.5%（FS） | ||||
| Temp. | ±0.5℃ | ||||
| （4～20） mA | Channels | Single channel,isolated | |||
| Characteristics | Reversible, fully adjustable, instrument / transmitter mode for selection | ||||
| Loop resistance | 400Ω（max）, DC24V； | ||||
| Accuracy | ±0.1mA | ||||
| Control contacts | Channels | Single channel | |||
| Relay contacts | SPDT | ||||
| Load capacity | AC 220V/3A Max；AC 110V/5A Max；DC 24V/3A Max | ||||
| Work Environment | Temp：0～50℃， relative humidity：≤85%RH,（none condensation） | ||||
| Storage Environment | Temp：（-20～60）℃；relative humidity：≤85%RH（none condensation） | ||||
| Dimensions | 48 mm×96mm×80 mm (H×W×D) | ||||
| Hole size | 44（H）mm×92(W)mm | ||||
| Installation | Panel mounted,fast installation | ||||
Basic order units
CCT-3301E conductivity transmitting controller(DC12V)
CCT-3300E conductivity transmitting controller(DC24V)
CCT-3310E conductivity transmitting controller(AC110V)
CCT-3320 conductivity transmitting controller(AC220V)
CT-3320E conductivity transmitting controller(AC220V)
CCT-3320T conductivity transmitting monitor(AC220V)
Note:The models with E are EMC enhancement type used for the industrial fields where there are strong interferences
.
CCT3320T is only with (4～20)mA current output and without any control output.
Conductivity cell selection
CON3133-13(0.1 cm-1) 316L probe used for RO pure water measuring;
CON1134-13(1.0 cm-1) plastic probe used for industry water ,tap water and cooling water measuring;
CON2134-13(1.0 cm-1) graphite probe used for industry pure water and municipal drinking water measuring;
CON2135-13(5.0 cm-1)graphite probe used for waster water and high salinity water measuring.
Note: CON1134-13（1.0 cm-1）can’t be used for food, beverage, medical or sanitary industries.
