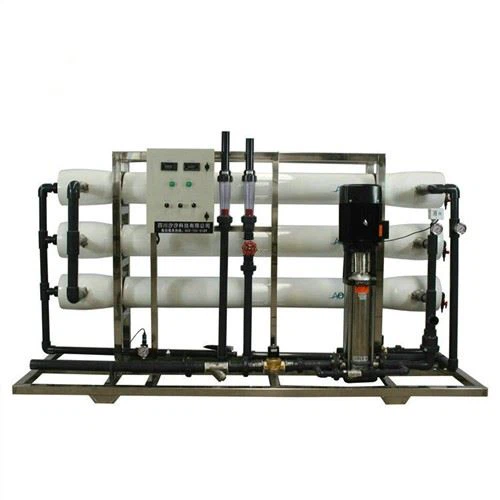

6000 LPH RO Plant can remove 99.8% impurities from water and makes it pure and safe for drinking.

All filter components are made of food grade material and Reverse Osmosis Membrane used is NSF certified.

Main Processing

Raw water→ raw water pump→quartz sand filter →activated carbon filter→chemical dosing system→security filter→high pressure pump→ro system→water supplying

General functions:

1. Raw water pump: provide needed pressure for every pre-treatment filter;

2. Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;^^

3. Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances;

4. Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;

5. High pressure pump: provide needed working pressure for RO system, ensure production capacity of pure water;

6. RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.

Specifications:

Model	HRO-6
Yield	36000GPD (6T/H)
S/N	Device name	Specification	Qty	Remarks
1-Pretreatment
1	Inlet solenoid valve	DN32	1	SS
2	Check valve	DN32	1	SS
3	Automatic mechanical filter	Ф600×1600mm	1	FRP, include Quartz sand, Pressure gauge, Automatic valve etc.
4	Automatic activated carbon absorber	Ф600×1600mm	1	FRP, include Activated carbon, Pressure gauge, Automatic valve etc.
5	Security Filter	Ф250×1000mm	1	SS, include PP filter element, Pressure gauge, exhaust valve etc.
5	Frame of pretreatment	N/A	1set	SS
2-RO system
6	Pressure vessel	RE-2	3	FRP,8 inch
7	Pressure gauge	Ф60	4	SS shell
8	Flowmetre	20GPM	2	PMMA
9	Pressure switch	1"	2
10	RO membrane	RU-8040	6	Polyamide
11	High Pressure Pump	8-14	1	SS304
12	Conductivity meter	CM-230	2
13	Solenoid valve	DN25	2
14	Pipeline and valve	DN25/DN32	1set	UPVC
15	Frame of RO system	2500×1000×1800mm	1set	SS
7-Electronic control system
16	Combination electric cabinet	DK-1-2	1set
17	Requirement: Flow of raw water: Q≥8.0m3 /h Pressure of raw water inlet: 2.0kg/cm2≤ Pa≤4.5kg/cm2
Outline Dimension: LWH(mm)	8m3
