FRP Vessels Tanks 6″ Open Top & Bottom

Fiberglass reinforced plastic tanks used in water treatment is shorted for FRPT, and it is also named water filter FRP tank, FRP vessel for water treatment and softener FRP pressure tanks, etc. FRP is an advanced composite material made of fiberglass and resin.

Model	Vessel Size		Vol	Opening		Dimension (mm)
	Inch	mm	L	Top	Bottom	LA	LB	LC	D
3072,6T6B	30x72	Φ780x2200	728	6´´-Flange	6´´-Flange	2200	1935	265	780
3672,6T6B	36x72	Φ918x2260	993	6´´-Flange	6´´-Flange	2260	1940	320	918
4272,6T6B	42x72	Φ1088x2270	1362	6´´-Flange	6´´-Flange	2270	1950	320	1088
4872,6T6B	48x72	Φ1218x2270	1743	6´´-Flange	6´´-Flange	2270	1950	320	1218
6370,6T6B	63x70	Φ1620x1780	2580	6´´-Flange	6´´-Flange	2100	1780	320	1620
6383,6T6B	63x83	Φ1620x2080	3150	6´´-Flange	6´´-Flange	2400	2080	320	1620
7282,6T6B	72x82	Φ1820x2420	3561	6´´-Flange	6´´-Flange	2420	2060	360	1820
7296,6T6B	72x96	Φ1820x2800	4670	6´´-Flange	6´´-Flange	2800	2450	350	1820

Features:

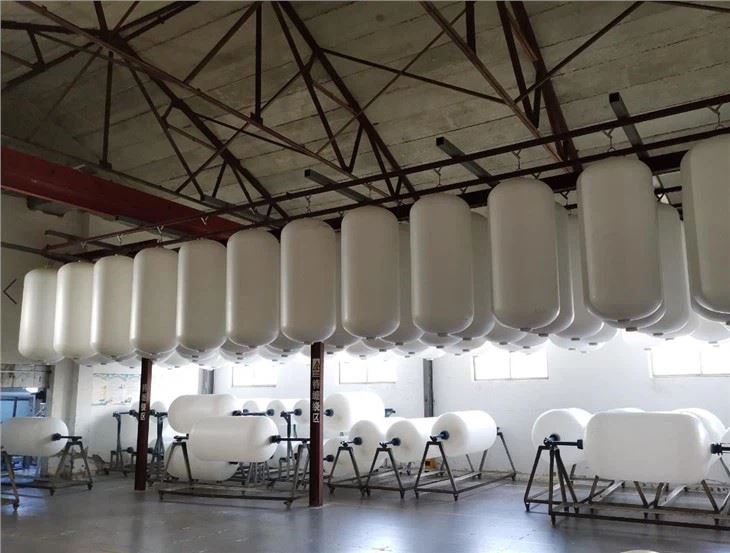

PE liner with FRP filament winding, high quality

Full choice of pressure tanks from 6´´-72´´ in diameter and 13´´-110´´ in height

Available in natural, blue, black, grey and any other colors on request

NSF and CE certified

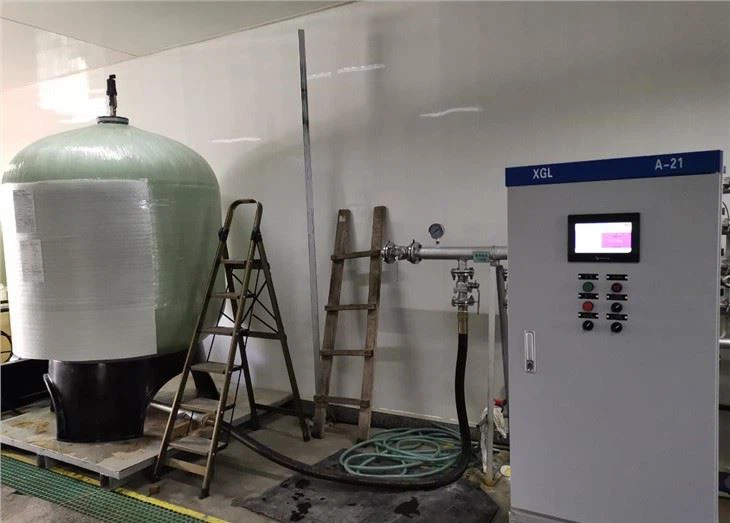

FRP Vessels Tanks 6″ Open Top & Bottom Operating Specifications: Operating Pressure: 150 psi (10.5 Bar) Operating Temperature: 34-120ºF（1-49ºC） Max Vacuum: 5" Hg(127mm Hg) Lowest exposed Temperature：7ºF(27ºC) FRP Vessels Tanks 6″ Open Top & Bottom Testing parameters: Exceed 100,000 times of fatigue cycle test under 0-150psi Burst pressure test at 600psi
