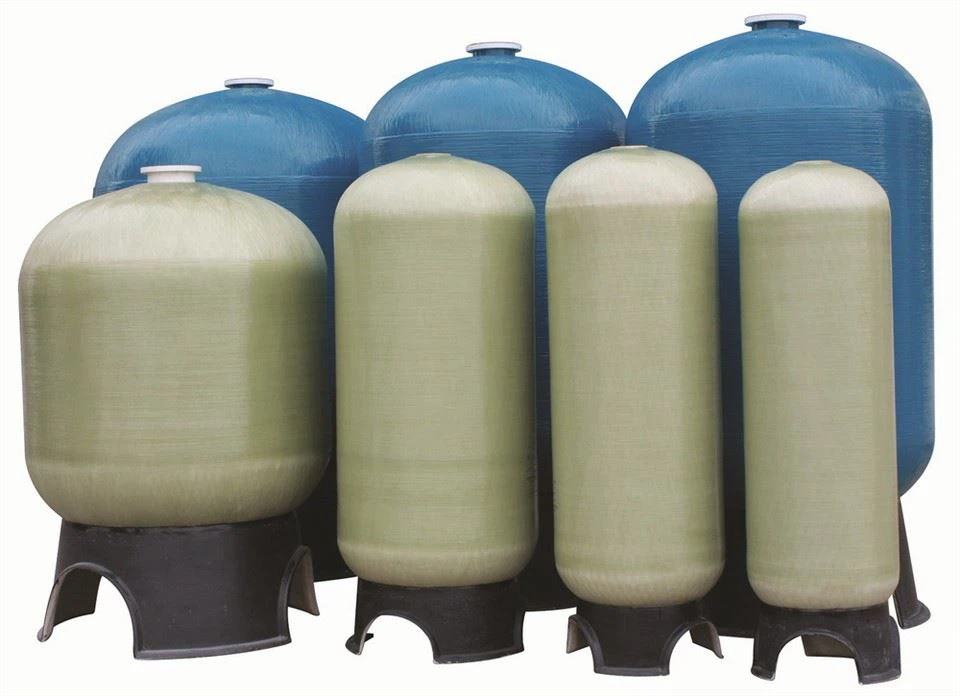

Fiberglass reinforced plastic tanks used in water treatment is shorted for FRPT, and it is also named water filter FRP tank, FRP vessel for water treatment and softener FRP pressure tanks, etc. FRP is an advanced composite material made of fiberglass and resin.
Model | Vessel Size | Vol | Opening | Dimension (mm) | |||||
Inch | Inch | mm | L | Top | Bottom | LA | LB | LC | D |
1665,4T4B | 16x65 | Φ410x1870 | 187.7 | 4´´-8UN | 4´´-8UN | 1870 | 1650 | 220 | 410 |
1865,4T4B | 18x65 | Φ465x1870 | 249 | 4´´-8UN | 4´´-8UN | 1870 | 1650 | 220 | 465 |
2162,4T4B | 21x62 | Φ550x1910 | 326 | 4´´-8UN | 4´´-8UN | 1910 | 1590 | 320 | 550 |
2472,4T4B | 24x72 | Φ615x2150 | 471 | 4´´-8UN | 4´´-8UN | 2150 | 1830 | 320 | 615 |
3072,4T4B | 30x72 | Φ780x2150 | 745 | 4´´-8UN | 4´´-8UN | 2140 | 1810 | 330 | 780 |
3672,4T4B | 36x72 | Φ918x2150 | 993 | 4´´-8UN | 4´´-8UN | 2150 | 1830 | 320 | 918 |
Features:
PE liner with FRP filament winding, high quality
Full choice of pressure tanks from 6´´-72´´ in diameter and 13´´-110´´ in height
Available in natural, blue, black, grey and any other colors on request
NSF and CE certified
FRP Vessels Tanks 4″ Open Top & Bottom Operating Specifications: Operating Pressure: 150 psi (10.5 Bar) Operating Temperature: 34-120ºF（1-49ºC） Max Vacuum: 5" Hg(127mm Hg) Lowest exposed Temperature：7ºF(27ºC) FRP Vessels Tanks 4″ Open Top & Bottom Testing parameters: Exceed 100,000 times of fatigue cycle test under 0-150psi Burst pressure test at 600psi |  |
