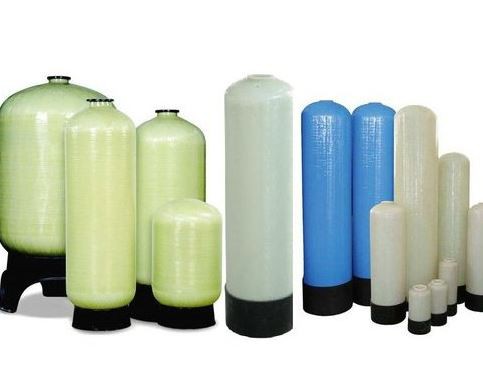

FRP Pressure Vessel

Description

Fiberglass reinforced plastic pressure vessel is most commonly used filtration tank in reverse osmosis watertreatment system.

FRP pressure vessel ;Structure& Materials

Liner material : Rotation molding or Blowing One-piece seamless PE inner liner
Outer Winding : High performance resin with Fiber Glaess three-dimensional winding
Opening : 2.5” and 4’’ reinforced plastic thread

Bass Materials : FRP or reinforced PP

Models

Model	Vessel Size		Vol	Opening		Dimension(mm)
	Inch	mm	L	Top	Bottom	LA	LB	LC	D
613,2.5T	6x13	Φ155*335	4.6	2.5´´NPSM	\	335	330	\	155
617,2.5T	6x17	Φ155*440	6.6	2.5´´NPSM	\	440	435	\	155
635,2.5T	6x35	Φ155*895	13.7	2.5´´NPSM	\	895	890	\	155
713,2.5T	7x13	Φ180*335	6.3	2.5´´NPSM	\	335	331	\	185
717,2.5T	7x17	Φ180*436	8.5	2.5´´NPSM	\	436	432	\	185
735,2.5T	7x35	Φ180*895	19.1	2.5´´NPSM	\	895	891	\	185
744,2.5T	7x44	Φ185*1125	24.3	2.5´´NPSM	\	1125	1120	\	185
813,2.5T	8x13	Φ205*335	7.4	2.5´´NPSM	\	335	331	\	205
817,2.5T	8x17	Φ205*440	10.5	2.5´´NPSM	\	440	431	\	205
835,2.5T	8x35	Φ205*898	23.6	2.5´´NPSM	\	898	891	\	205
844,2.5T	8x44	Φ205*1125	31.3	2.5´´NPSM	\	1125	1118	\	205
917,2.5T	9x17	Φ232*440	13.2	2.5´´NPSM	\	440	432	\	232
935,2.5T	9x35	Φ230*903	31.6	2.5´´NPSM	\	903	891	\	232
942,2.5T	9x42	Φ230*1075	38.5	2.5´´NPSM	\	1075	1063	\	232
948,2.5T	9x48	Φ230*1228	44.6	2.5´´NPSM	\	1228	1216	\	232
1017,2.5T	10x17	Φ257*450	16.5	2.5´´NPSM	\	450	431	\	257
1035,2.5T	10x35	Φ257*910	38.3	2.5´´NPSM	\	910	891	\	257
1044,2.5T	10x44	Φ257*1130	49.5	2.5´´NPSM	\	1130	1110	\	257
1054,2.5T	10x54	Φ257*1390	61.9	2.5´´NPSM	\	1390	1370	\	257
1248,2.5T	12x48	Φ307*1220	77.3	2.5´´NPSM	\	1220	1215	\	307
1252,2.5T	12x52	Φ307*1338	84.8	2.5´´NPSM	\	1338	1332	\	307
1265,2.5T	12x65	Φ307*1650	106.3	2.5´´NPSM	\	1650	1640	\	307
1344,2.5T	13x44	Φ334*1135	82.9	2.5´´NPSM	\	1135	1130	\	334
1354,2.5T	13x54	Φ334*1400	103.6	2.5´´NPSM	\	1400	1392	\	334
1465,2.5T	14x65	Φ360*1665	145.6	2.5´´NPSM	\	1665	1660	\	360
1665,2.5T	16x65	Φ410*1665	187.7	2.5´´NPSM	\	1665	1655	\	410

Features:

Full choice of pressure tanks from 6´´-72´´ in diameter and 13´´-110´´ in height

Available in natural, blue, black, grey and any other colors on request

NSF and CE certified

Specification

FRP pressure Vessels 2.5″ Open Top Operating Specifications:

Operating Pressure: 150 psi (10.5 Bar)

Operating Temperature: 34-120ºF（1-49ºC）

Max Vacuum: 5" Hg(127mm Hg)

Lowest exposed Temperature：7ºF(27ºC)

Exceed 100,000 times of fatigue cycle test under 0-150psi

Burst pressure test at 600psi
